MORTERPLAS SBS FPV-S 5 KG MIN

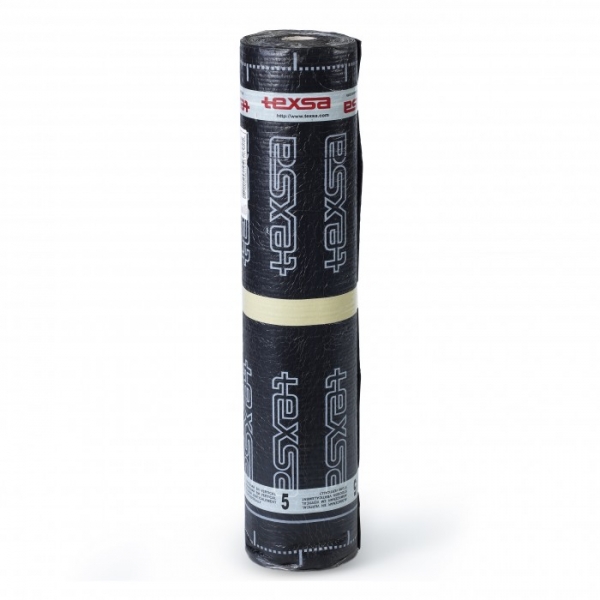

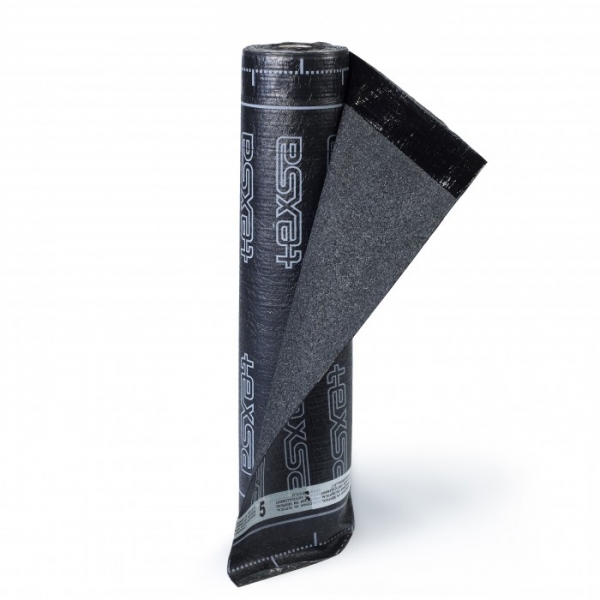

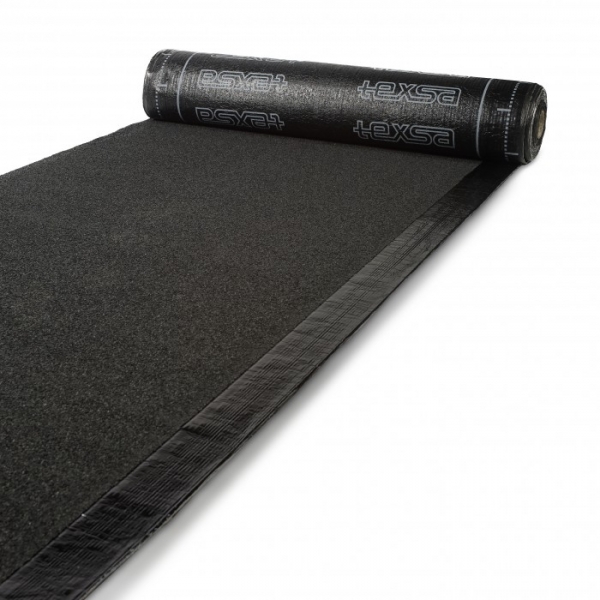

MORTERPLAS SBS FPV-S MIN is a self-protected, elastomeric SBS bitumen-based waterproofing membrane reinforced with high grammage polyester felt (FP), mineral finish on the upper side and thermofusible film on the underside.

Technical documentation

  • Logo Facebook
  • Logo Twitter
  • Logo Linkedin
  • Advantages
  • Application
  • Installation
  • Regulations
• MORTERPLAS SBS FPV-S MIN is manufactured with an SBS elastomeric compound, which confers excellent low temperature pliability to the membrane.
• The high weight punched and stable, non-woven polyester felt (FP) reinforcement confers the best mechanical properties to the membrane:
• High tensile strength.
• Maximum puncturing strength (static and dynamic).
• Great tear strength.
• Good dimensional stability.
• MORTERPLAS SBS FPV-S 5 kg MIN is mainly applied in a single-ply system, on roofs with a pitch exceeding 1%.
• SUBSTRATE: The surface receiving the membrane must be dry, firm, even, clean and free from loose materials.
• The membrane can be applied either fully bonded or loose-laid.
• Prior to adhering the membrane to the substrate, the latter must be primed with either EMUFAL I, EMUFAL L or PIBIAL.
• Once dry, the membrane is torched on.
• Overlaps are flame-bonded, with minimum 8-cm width.
• Installation method and details must follow the recomendations of the UNE 104401 standard.
• The product is CE marked according EN 13707. Holds the certificate Nº 0099/CPD/A85/0087
• Quality Management System according to the requirements of ISO 9001:2008 standard
